On30 Legs

One thing I have been putting off is building my new revised legs for the FremOn30 modules.

I started by disassembling my old legs:

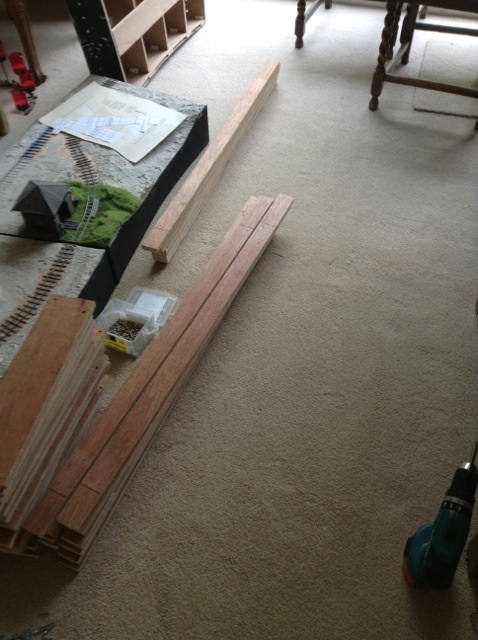

Old legs

I then made a new set. I’ve built one as a prototype and it will bolt through the end plates from inside. When I’ve made a second then I can test them out.

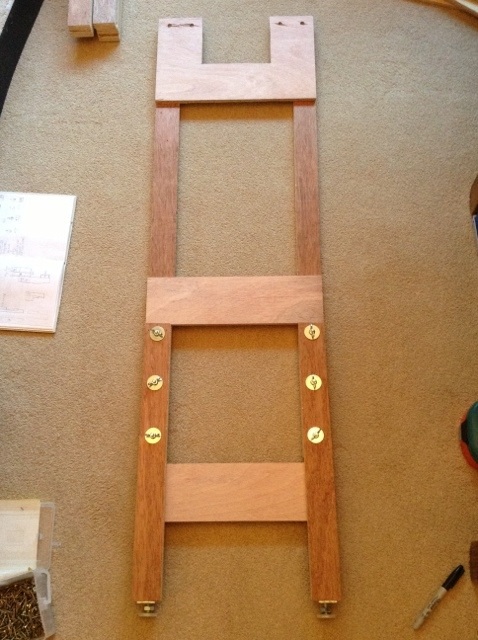

New legs

They have adjustable feet for those wonky floors…

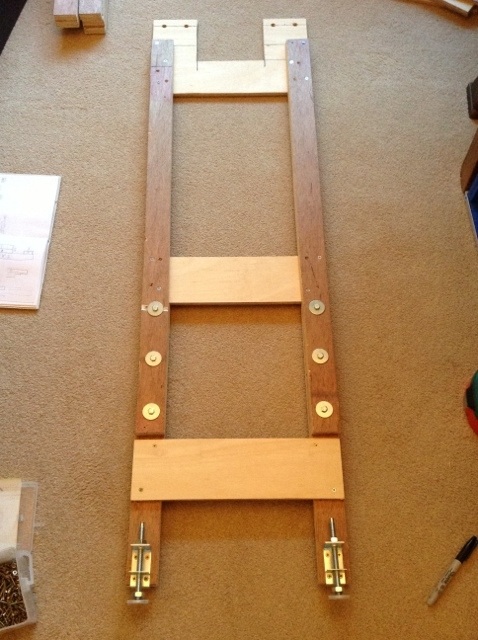

New legs back

In pieces to fit in the car across the boot:

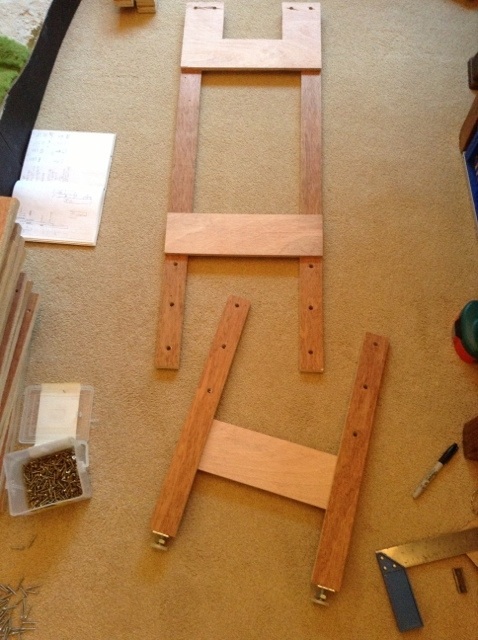

In pieces

The short piece is half the size of the second so they should stack neatly. They are bolted together with M6 bolts in 10mm holes for plenty of alignment adjustment. Knowing my cutting and drilling, they’ll need it!
